Mobil ATF™ 320

Automatic Transmission Fluid

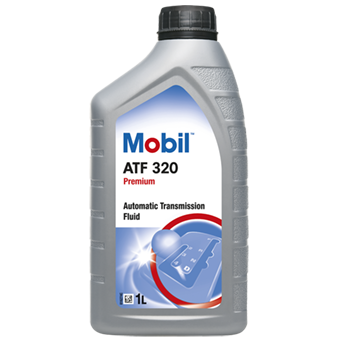

mobil atf 320 eu 1l

Mobil ATF 320 is an extra high performance automatic transmission fluid.



Mobil ATF 320 is recommended for most passenger car and commercial automatic transmissions. It is also suitable for power steering systems, hydraulic applications and some manual transmissions where an automatic transmission fluid is specified.



Features and Benefits

•  The correct frictional requirements to give smooth transmission operation over wide operational bands



•  Protection against degradation at high operating temperature and extended service



•  Low temperature pumpability and circulation ensuring cold start performance



•  Compatibility with all conventional seal materials found in transmission units



Applications

Mobil ATF 320 is recommended for most passenger car and commercial automatic transmissions. It is also suitable for power steering systems, hydraulic applications and some manual transmissions where an automatic transmission fluid is specified.



Specifications and Approvals



This product has the following approvals:

MAN 339 Typ Z1

MAN 339 Typ V1

Voith Turbo H55.6335.xx

ZF TE-ML 14A

ZF TE-ML 04D

ZF TE-ML 17C

ZF TE-ML 03D

VOLVO 97341

MAN 339 Typ L1



This product is recommended for use in applications requiring:

Allison C-4

Ford MERCON

GM DEXRON IIiG



This product meets or exceeds the requirements of:

R. Bosch AS TE-ML 09



Properties and Specifications

Property



Brookfield Viscosity @ -40 C, mPa.s, ASTM D2983

17900

Density @ 15 C, g/ml, ASTM D4052

0.856

Flash Point, Cleveland Open Cup, °C, ASTM D92

220

Kinematic Viscosity @ 100 C, mm2/s, ASTM D445

7.6



Health and safety

Health and Safety recommendations for this product can be found on the Material Safety Data Sheet (MSDS) @ http://www.msds.exxonmobil.com/psims/psims.aspx
